Fenner Industrial Automation Drives
Powertran - AC DRIVE
A variable-frequency drive (VFD) or inverter is a type of adjustable-speed drive used in electro-mechanical drive systems to control AC motor speed and torque by varying motor input frequency and voltage. PT-Series Drives is dedicated to the design and manufacture of sophisticated Variable Frequency Drives, used to control motors in a wide variety of industrial and energy saving applications.

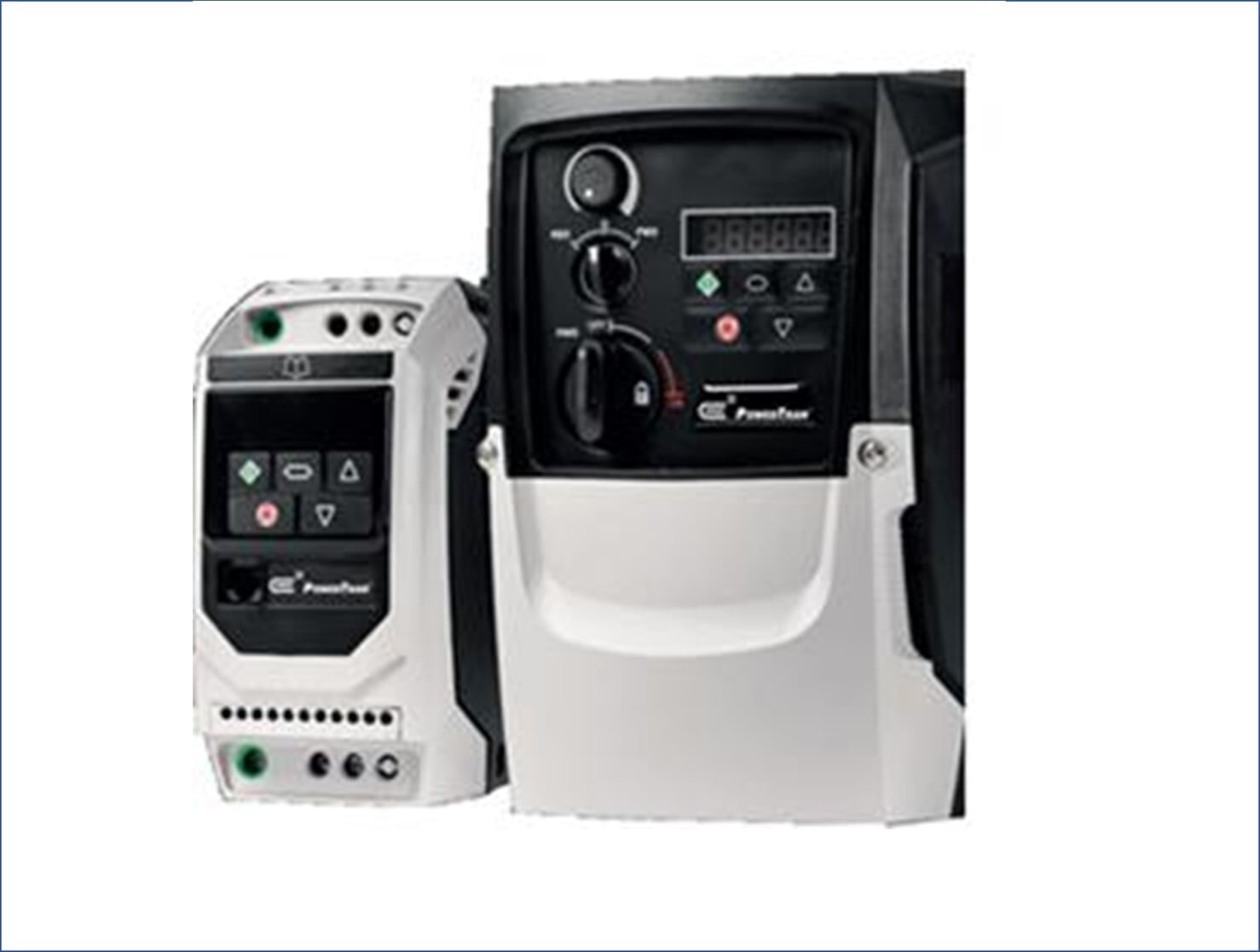

PT Series E3
General Purpose Drive provides Easy control for all motor types. Designed with a focus on the simplicity of installation, connection and commissioning. It provides precise motor control and energy saving. Enables to Switch between Industrial, Pump and Fan modes to optimize your application.
- 0.37 … 37 kW / 0.5HP – 50HP
- 1 x AC 200..240 V
- 3 x AC 380..480 V
- Housing degree of protection: IP20, IP66
- V/f and VFC control
- Internal category C1 EMC filter
- Industrial mode, Pump mode and Fan mode
- Fieldbus interface
- PID controller
- Internal Brake Chopper
- Bluetooth connectivity
- Dual Analog inputs
- Conformal Coated-3C2
- Overload Capacity – 150% for 60 sec
- On-board Modbus RTU, CANopen, Bluetooth

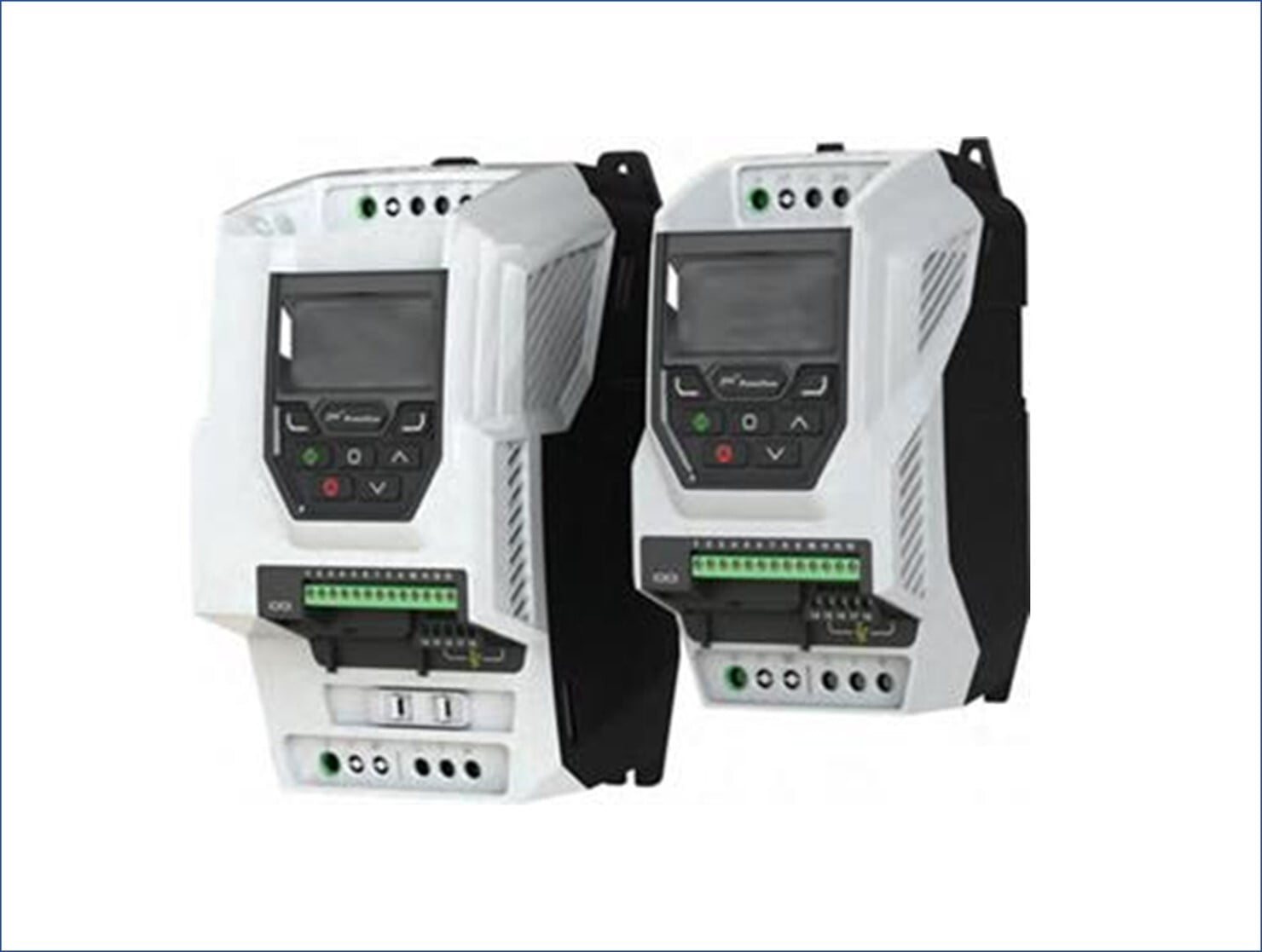

PT Series P2
Powerful Performance, Advanced Motor Control. P2 series offers the perfect combination of high performance together with the ease of use to enable the best performance of even the most complex applications. Dedicated Hoist Mode Operation with motor holding brake control.
- 0.75 … 250 kW / 1HP – 350HP
- 1 x AC 200..240 V.
- 3 x AC 380..480 V.
- Housing degree of protection: IP55, IP20, IP66.
- Synchronous and asynchronous motors without encoder.
- V/f and VFC control.
- Control plate.
- Hoist mode.
- Fieldbus interface.
- PID controller.
- Safe stop (STO).
- Conformal Coated-3C2
- Overload Capacity – 150% for 60 sec – 200% for 04 sec
- Built-in PI control, EMC filter(C1) & brake chopper
- On-board Modbus RTU, CANopen, Bluetooth
